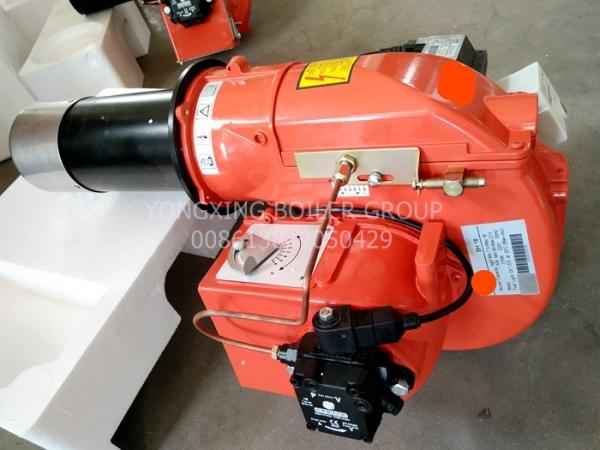

380v 50hz Light Industrial Gas Burner Compact Industrial Propane Gas Burners

Yong Xing Boiler Group Co.,Ltd

380v 50hz Light Industrial Gas Burner Compact Industrial Propane Gas Burners

Brand Name : YONGXING

Model Number : BHG5-BHG350P

Certification : CE,ISO9001,ISO14001,SGS

Place of Origin : ZHEJIANG

MOQ : 1SET

Price : negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000SETS/YEAR

Packaging Details : WOOD BOX,CARTON BOX,PALLETS

Color : red

Certificate : CE,ISO9001,ISO14001

Motor : 380v,50hz,3ph

thermal power : 35kw-10500kw

Usage : Steam boilers

control : two-stage or three stage

Contact Now

light oil burner stove burner industrial used oil burner for Russia Household Heating Machine

Brief introduction of fuel burner product performance

1. Passed the national tsg_zb001-2008 test product;

2. Core components are all imported first-tier brand products with stable performance and high reliability.

3. Choose fuel oil: light oil, heavy diesel oil, heavy oil, coal tar, residue oil and other fuel oil, can realize cold electronic automatic ignition;

4. Good atomization effect of fuel, small atomization particle size and uniform size distribution.

5. Sufficient combustion will not produce black smoke, and the black degree of smoke and dust in the combustion products will reach the national environmental protection index

6. Safe combustion, stable operation, fuel combustion efficiency of 99.9% or more;

It overcomes combustion instability, coking blockage, no tempering and defiring;

GAS OIL burner burner manufacturers with famous part ,long life time:
SIEMENS CONTROLLER
DUNGS VALVE
DANFOSS NOZZLE
SUNTEC OIL PUMP
BRAHMA/PARKER SOLENOID VALVE
FIDA TRANSFERMA
SIEMENS SERVOMOTOR

GAS OIL burner burner manufacturers DATASHEET FOR REFERENCE

NATRUAL GAS BURNER EMAIL: bettysun001@vip.126.com
MODEL GAS COMBUSTION BURNER OUTPUT MAIN SUPPLY Motor CONTROL METHOD
NM3/HR KW
MIN MAX MIN MAX KW
SINGLE STAGE CONTROL
YXG5 3 5.7 30.06 56.3 1N-220V 50HZ 0.11 ONE STAGE
YXG6 3 5.7 30.06 56.3 1N-220V 50HZ 0.11 ONE STAGE
YXG11 4.8 10 48.8 99 1N-220V 50HZ 0.11 ONE STAGE
YXG10 4.8 99 48.8 99 1N-220V 50HZ 0.15 ONE STAGE
YXG17 7 17 69 169 1N-220V 50HZ 0.15 ONE STAGE
YXG20 5.85 20.1 80 200 1N-220V 50HZ 0.37 ONE STAGE
YXG30 6 30 60 300 1N-220V 50HZ 0.37 ONE STAGE
YXG35 9 35.8 90 359 1N-220V 50HZ 0.37 ONE STAGE
YXG34 12 38 118 338 3N-380V 50HZ 0.37 ONE STAGE
YXG40 19 43 185 425 3N-380V 50HZ 0.55 ONE STAGE
YXG50 17 60 169 586 3N-380V 50HZ 0.55 ONE STAGE
TWO STAGE CONTROL
YXG20P 5.85 20.1 80 200 1N-220V 50HZ 0.37 TWO STAGE
YXG30P 6 30 60 300 1N-220V 50HZ 0.37 TWO STAGE
YXG35P 9 35.8 90 358 1N-220V 50HZ 0.37 TWO STAGE
YXG34P 12 38 118 338 3N-380V 50HZ 0.37 TWO STAGE
YXG40P 19 43 185 425 3N-380V 50HZ 0.55 TWO STAGE
YXG50P 17 60 169 586 3N-380V 50HZ 1.5 TWO STAGE
YXG60P 25 75 248 738 3N-380V 50HZ 1.5 TWO STAGE
YXG100P 28 101 280 995 3N-380V 50HZ 2.2 TWO STAGE
YXG120P 35 121 350 1200 3N-380V 50HZ 2.2 TWO STAGE
YXG150P 42 144 414 1428 3N-380V 50HZ 3 TWO STAGE
YXG200P 60 202 590 2000 3N-380V 50HZ 3 TWO STAGE
YXG250P 50 253 490 2500 3N-380V 50HZ 7.5 TWO STAGE
YXG300P 66 313 657 3100 3N-380V 50HZ 7.5 TWO STAGE
YXG350P 93 350 924 3500 3N-380V 50HZ 9 TWO STAGE

We need to ask you some details for sending you the more suitable quotation

1. what is the application of the burner ?(for food industry ,textile industry, chemical industry or others )
2. what is the capacity per hour do you need?(how many kw ?)
3. which fuel do you want to use for your boiler?(oil or gas,lpg,kerosene and etc ?)
Pls send us effiicent info to get the price soonest.
