0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

Product Categories

Yong Xing Boiler Group Co.,Ltd

Contact Now

0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

Name: 07Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
Brand: YONGXING
Price: 1 USD

China 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler wholesale

Brand Name : YONGXING

Model Number : WNS6-1.25-YQ

Certification : ISO9001,ISO14001,A-CLASS，SGS,BV

Place of Origin : HENAN

MOQ : 1set

Price : negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 1000SETS/MONTH

Delivery Time : 15-30DAYS

Packaging Details : Nude packing+wooden box+steel box ,and etc.

FUEL : NATURAL GAS/LPG/CITY GAS ,ETC

LOW NITROGEN : support if customer request

USAGE : Food,texitile,green house ,hotel and so on

PRESSURE : 0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa

Outer Material : Stainless steel or Color steel

Pressure : Low pressure

Structure : Fire Tube

Name : Oil steam boiler

Contact Now

Gas Fired Packaged new gas boilers prices with European Burner for Garment Factory

new gas boilers prices Boiler technology

1, The well-designed center's regenerative three-return combustion chamber and optimized heat transfer surface design ensure optimum heat transfer and make the boiler thermal efficiency more than 90%.
2, high-quality burner, fuel utilization rate of more than 99.9%, smoke emissions are clean, no pollution.
3, high-quality insulation layer to ensure that even in the cold outdoors, the surface of the furnace body heat dissipation is less than 1%.
4, Self-control combustion: fully automatic burner and monitoring system to reduce boiler maintenance management and achieve precise control of the operation process.
5, New gas boilers prices Integrated configuration: According to the integrated configuration standard, all the accessories are assembled and factoryized, which makes the on-site installation more convenient and faster.

New gas boilers prices technical data sheet as follow (for reference only) :

Project, unit and data, model			WNS0.5-1-Y(Q)	WNS1-1-Y(Q)	WNS2-1-Y(Q)	WNS3-1-Y(Q)	WNS4-1.25-Y(Q)	WNS5-1.25-Y(Q)	WNS6-1.25-Y(Q)	WNS8-1.25-Y(Q)	WNS10-1.25-Y(Q)
Rated evaporation		t/h	0.5	1	2	3	4	5	6	8	10
Rated steam pressure		MPa	1	1	1	1	1.25	1.25	1.25	1.25	1.25
Rated steam temperature		°C	184	184	184	184	194	194	194	194	194
Rated feed water temperature		°C	20	20	20	20	20	20	105	105	105
Total heated area		M2	15.4	30.7	60.9	90.5	124.7	128.3	136.3	187	217.6
exhaust temperature		°C	230	230	230	230	220	220	220	220	220
Gas boiler efficiency		%	91.78	91.44	91.77	92.14	92.3	92.03	92.15	91.87	92.29
Applicable fuel		/	Diesel, heavy oil, natural gas, liquefied gas, city gas
Applicable fuel		/	Diesel oil.Heavy oil.Natural gas.City gas
Ringman black		/	<1 level
Fuel consumption	Diesel	Kg/h	31.5	63	125.5	189	253	315	376	501	628
	heavy oil	Kg/h	33.02	66.99	131.72	197.55	263.12	328.55	394.26	525.57	680
	natural gas	Nm3/h	37.5	75	151	225	300	375	449	600	750
	Liquefied gas	Nm3/h	12.66	25.38	50.68	76.01	101.24	126.41	151.7	202.2	252.8
	City gas	Nm3/h	75	150	302	450	600	750	898	1200	1500
Boiler weight	Empty furnace	T	2.7	4.87	7.32	10.1	12.86	14.7	15.3	18.6	21.3
Boiler weight	Full of water	T	3.7	6.4	12.8	16	twenty two	24.7	25.5	32.5	38
using electric		V	380V/50Hz
Main steam valve diameter (DN)		Mm	50	65	65	100	100	125	125	150	150
Safety valve diameter (DN)		Mm	50	50×2	50×2	50×2	50×2	80 50	80 50	80×2	80×2
Drain valve diameter (DN)		Mm	40	40	40	40	40	40	40	40	40
Feed pump model		SS	JGGC1	JGGC2	JGGC2	JGGC4	JGGC4	JGGC6	JGGC8	JGGC12	JGGC12
Chimney caliber		Mm	Φ316	Φ316	Φ400	Φ530	Φ530	Φ530	Φ530	Φ680	Φ680

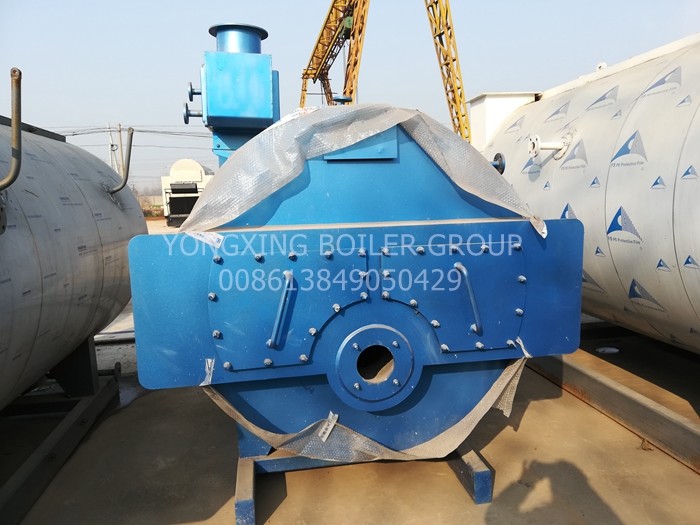

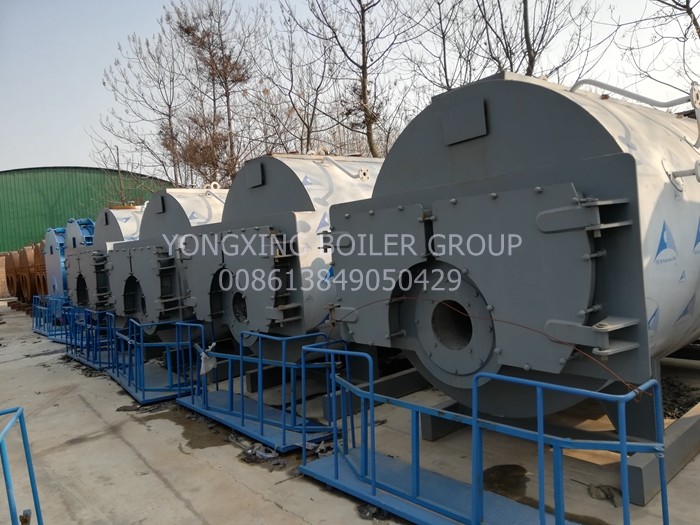

new gas boilers prices in factory work shop :

0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
