8 Ton Horizontal Fire Tube Boiler Oil Fired Heating Boilers Natural Curculation

High efficiency 8 ton oil fired steam boiler Main features of oil fired steam boiler:

8 ton oil fired steam boiler Design features :

1, Boiler design, production, manufacturing, supervision and inspection are strictly in accordance with the "steam boiler safety supervision regulations", JB/T 10094-2002 "general technical conditions for industrial boilers", JB/T 1619-2002 "boiler body manufacturing technical conditions" implementation, to ensure long-term safe and stable boiler work.

2, The body is a boiler shell type full wet back three-stroke downstream pyrotechnics pipe structure. The flame burns under micro-positive pressure in the large combustion chamber, extends and extends, with low combustion heat load and low NOx emission of harmful substances.

3, Waveform furnace and threaded smoke pipe structure, that is to improve the strength, and meet the needs of each part of the expansion by heat.

4, Butt joint is adopted for the main welding seam, and non-destructive flaw detection by X-ray and ultrasonic is conducted to ensure that the welding quality meets the national requirements.

5, Large boiler water volume and gas space, strong adaptability to load.

Reasonable design of the pot device, ensure the steam with water rate less than 4%, to meet the user's higher requirements for steam quality.

6, The use of new thermal insulation materials, light weight, less heat loss, good insulation performance.

7, The water level alarm adopts stainless steel as electrode rod and polytetrafluoroethylene as insulation material. Insert from above, not easy to hang dirty, reliable performance, long service life.

8, The front and rear smoke boxes are connected by hinges, which can be opened easily and maintained conveniently and quickly.

9, Oxygen content regulation (optional) : the system can successfully monitor the oxygen content in the flue gas, and real-time transmission of the data to the control system, through the intelligent analysis of the computer, automatically adjust the ratio of combustion equipment, so that in fact when in a good working state, combustion efficiency greatly improved, thus greatly reducing fuel consumption.

High efficiency 8 ton oil fired steam boiler Performance characteristics
1. It adopts the integrated convection design of the lower furnace, corrugated furnace and flue gas. The dust emission meets the national environmental protection requirements.
2. The furnace is made of corrugated furnace, which greatly improves the heating surface and strength.
3. The structure is reasonable and compact, the load adaptability is strong, the combustion is complete, and the thermal efficiency is high.
4. The boiler has a large heating area, fast heating and boosting, and easy operation.
5. The body safety accessories are complete, ensuring safe and economic operation.
6. With RIELLO burner, the combustion is stable and reliable.
7. High degree of automation and labor saving.
8. MOST IMPORTAN ,The boiler is small in size, light in weight, small in floor space, and low in infrastructure investment.

Our company will guide the installation and testing of the boilers sold by one or two engineers according to customer needs. The installation cycle has a small capacity boiler for 7-15 days and a large capacity boiler for 15-20 days.

During the period, the customer is responsible for the engineer's visa, airfare, accommodation, food, and salary of $80/day/person.

gas oil fired steam boiler ,boiler feed water request :

Boiler feed water should meet GB/T1576-2008 "Industrial Boiler Water Quality"
Flue gas emissions comply with the environmental requirements of the first-class regions of the country.

Water supply hardness: 0.03mmol / L,
Oxygen content: 0.1mg / L,
Boiler water full alkalinity: 6 ~ 24mmol / L,
PH (25 ° C): 10 ~ 12.

The soften water will promise boiler long life times

oil powered boiler

fuel oil boiler

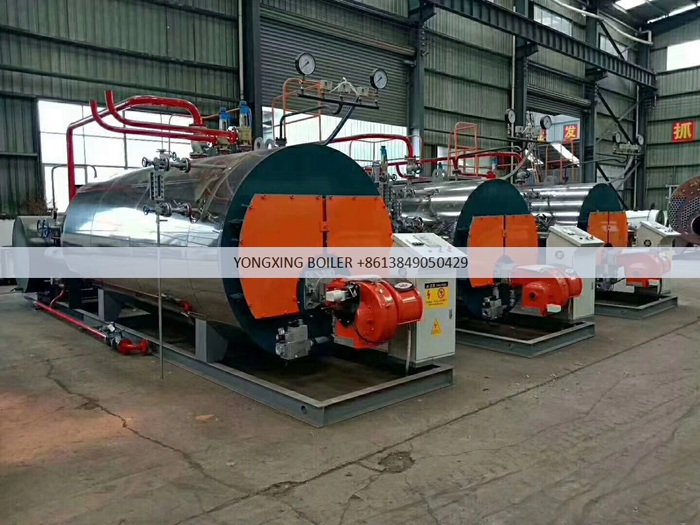

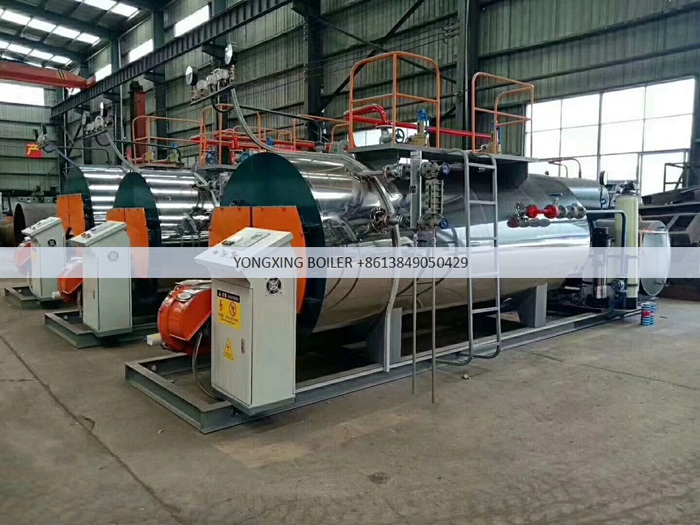

8 Ton Horizontal Fire Tube Boiler Oil Fired Heating Boilers Natural Curculation Images
