2M horizontal natural gas fired thermal oil heater for Chemical Industry
YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

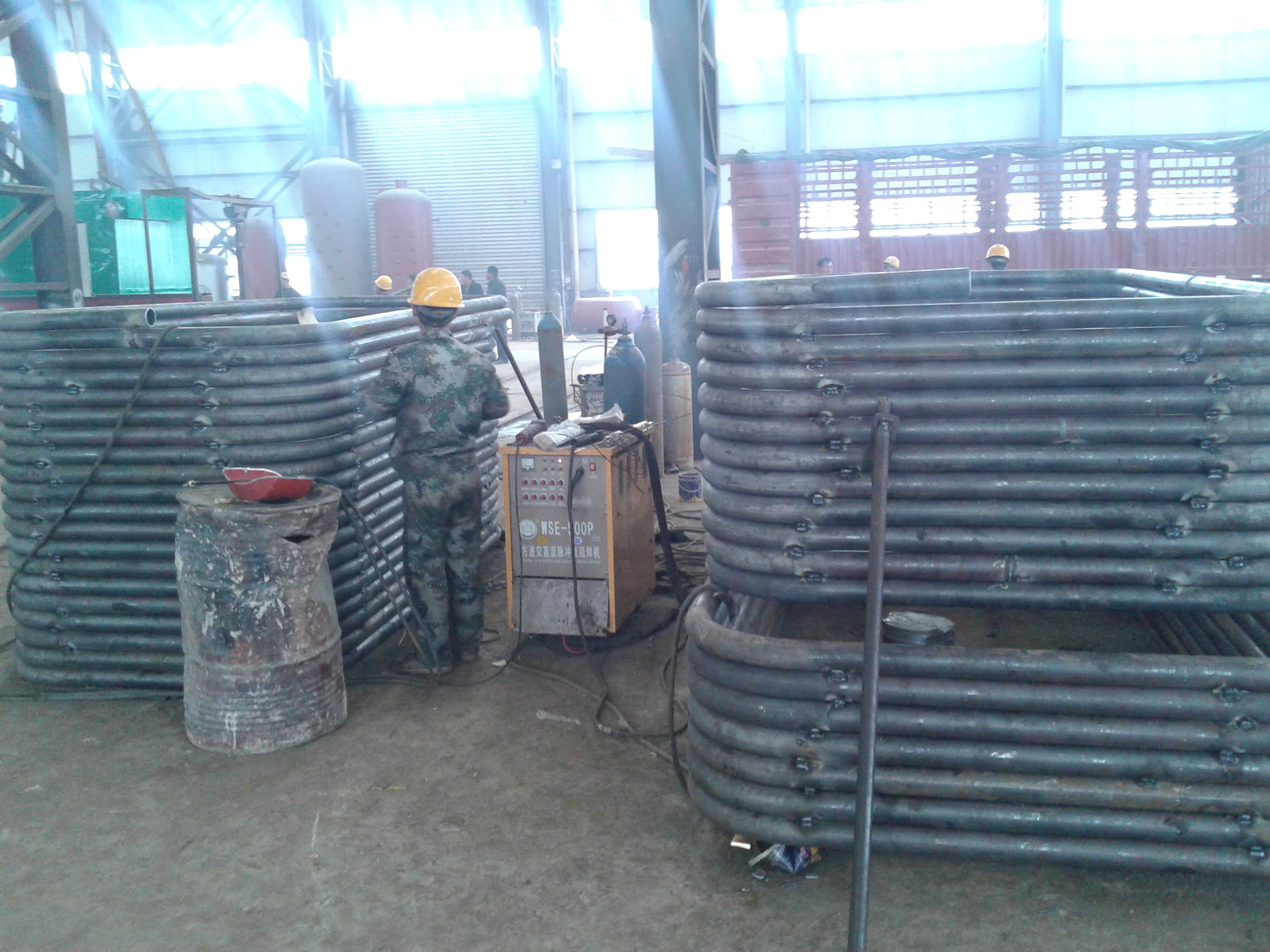

This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required(or water).
at last, the low temperature flue gas discharges to the aerosphere through the chimney.
Product Features:
1. Furnace body adopt unique patent technology, add top coiler, absorb flue gas waste heat and protect furnace top, so this improves service life of boiler.
2.Fuel burn layer and adiabatic combustion, design patent energy-saving arch, burn sufficiently and improve thermal efficiency of boiler better.
3. bi-coil design, safe & efficient heat conduction
4.intelligent controller with PLC and touch screen, fully automatic operation
5. well sealed boiler body & piping
VERTICAL YGL HAND FEED COAL/WOOD FIRED THERMAL OIL HEATER DATA SHEET
| Model data | YGL-120MA | YGL-240MA | YGL-350MA | YGL-500MA | YGL-700MA | YGL-1000MA | YGL-1200MA | YGL-1400MA |
| Rated thermal power Kw | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 |
| Thermal efficiency% | 73 | 73 | 73 | 73 | 73 | 73 | 73 | 73 |
| Design pressure Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Medium higher temperature °C | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Cycle oil m3/h | 12.5 | 20 | 40 | 60 | 80 | 100 | 100 | 100 |
| Piping connection diameter DN | 50 | 80 | 80 | 100 | 100 | 125 | 125 | 125 |
| Full system installed capacity Kw | 8 | 10 | 18 | 122 | 25 | 35 | 35 | 35 |
| Coal burning type | Ⅱ,Ⅲ soft coal,BIOMASS PELLET |
| Coal weight Kg/h | 28 | 56 | 80 | 100 | 155 | 185 | 240 | 290 |
| Boiler Size | Diameter mm | 1215 | 1500 | 1700 | 1700 | 1960 | 2050 | 2160 | 2290 |
| Height mm | 2310 | 2750 | 3060 | 3475 | 3805 | 4415 | 4760 | 5445 |
| Total weight Kg | 2500 | 3200 | 4800 | 5300 | 5800 | 6200 | 6700 | 7300 |
VERTICAL YLL TYPE CHAIN GRATE AUTOMATIC COAL FEEDER THERMAL OIL HEATER DATA SHEET
| Model data | YLL-700MA | YLL-1000MA | YLL-1200MA | YLL-1400MA | YLL-2000MA | YLL-2800MA |
| Rated thermal power Kw | 700 | 1000 | 1200 | 1400 | 2000 | 2800 |
| Thermal efficiency% | 92 |
| Design pressure Mpa | 1 |
| Medium higher temperature °C | 350 |
| Cycle oil m3/h | 60 | 80 | 100 | 100 | 160 | 180 |
| Piping connection diameter DN | 100 | 100 | 125 | 125 | 150 | 150 |
| Full system installed capacity Kw | 25.9 | 31.5 | 43.45 | 43.45 | 62.75 | 70 |
| Coal burning type | Ⅱ,Ⅲ soft coal,BIOMASS PELLET |
| Coal weight Kg/h | 145 | 180 | 225 | 270 | 392 | 535 |
| Boiler Size | L mm | 4710 | 4710 | 4710 | 4710 | 5830 | 6390 |
| W mm | 2080 | 2170 | 2280 | 2280 | 2450 | 2870 |
| H mm | 4033 | 4608 | 4855 | 5430 | 5826 | 3450 |
| Total weight Kg | 10886 | 11812 | 12980 | 13935 | 21680 | 28000 |
YLW HORIZONTAL CHAIN GRATE TYPE THERMAL OIL BOILER HEATERS DATA SHEET
| project | Unit | YLW-1400MA | YLW-2000MA | YLW-2400MA | YLW-3000MA |
| (120*104Kcal) | (170*104Kcal) | (200*104Kcal) | (258*104Kcal) |
| Rated thermal power | KW | 1400 | 2000 | 2400 | 3000 |
| Thermal efficiency | % | ≥73 | ≥73 | ≥73 | ≥73 |
| design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 |
| Medium maximum temperature | ℃ | 320 | 320 | 320 | 320 |
| Circulating oil | m3/h | 100 | 160 | 180 | 200 |
| Piping connection caliber | DN | 125 | 150 | 150 | 150 |
| Full system installed capacity | KW | 49.5 | 75 | 75 | 87 |
| Fuel type | | MA | MA | MA | MA |
| Coal consumption | kg/h | 300 | 400 | 470 | 565 |
| Dimensions (length * width * height) | mm | 4703*2270*4300 | 5820*2270*3950 | 5820*2270*4259 | 6790*2270*4395 |
| total weight | kg | 20500 | 21500 | 24600 | 33760 |
